The process of turbine oil conditioning involves filtration of oil based on the principal of water and particle removal by the means of coalescence and separation technology. Turbine oil is heated until it reaches the optimal temperature for purification and afterwards it is driven through filtration vessel where oil conditioning is preformed.
Movable Unit with four rotating wheels
Oil retaining tub
Flow rate 1250 I/h
380V 3 phase 50 Hz
Three-way electic actuated valve
Inlet suction stariner
Liquid and water level gauge
Coalescer element
Separator element
Differential pressure gauge
Unit, size approx. 2000x800x1440 mm
Unit, weight approx. 300 kg
Units of various sizes and heating capacities can be produced in accordance with specific requests of the Client. Temperature load of the heaters in all of our transformer oil filtration plants is less than 1 W/cm2 ensuring that any damage of oil is excluded.

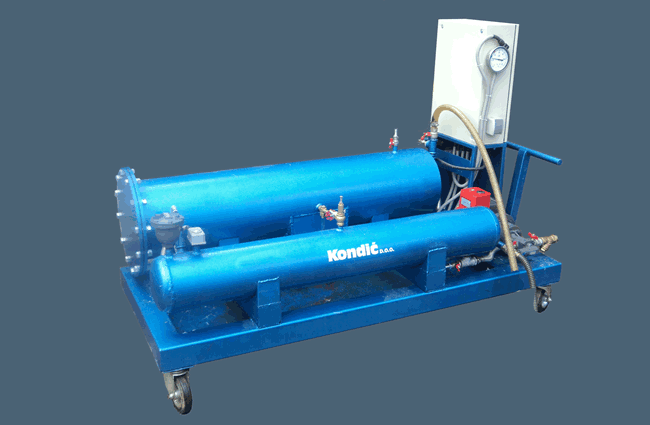

Turbine Oil Filtration Unit Type T-1250
Capacity: 1250 I/h
Heating capacity: 9,6kW
Filtration: 1 microns
