TRANSFORMER OIL FILTRATION
TRANSFORMER OIL FILTRATION KONDIC Company
Since 1984, KONDIC Company has been designing and manufacturing equipment for the filtration, dehydration and degassification of electrical insulating oils, as well as turbine oil purifiers.
Units for oil conditioning made by KONDIC Company are made in Europe and 100% made of European respective components.
Our transformer oil filtering machines are designed to perform following operations:
-transformer oil drying (separation of free and dissolved water),
-separation of gases from trafo oil (degasification), and
-transformer oil filtration for separation of impurities, fibres and metal particles.
The process of transformer oil conditioning involves filtration of oil under high vacuum in heated condition. This ensures efficient elimination of free and dissolved water, and entrapped gasses form trafo oil. Specially designed system in the degassing tank provides uniform distribution of the processed oil in the low-pressure environment, in order to achieve best treatment results.
Temperature load of the heaters in all of our transformer oil filtration plants is less than 1 W/cm2 ensuring that any damage of oil is excluded.
The puncture voltage can be considerably increased and the coefficient of loses tang δ improved by filtering, degassing and dehydration of insulating oil to the extent depending on moisture content.
TRANSFORMER OIL FILTRATION, DEGASATION AND DRYING PLANTS are made with the capacities from 250 up to 12000 l/h.
Units can be produced in accordance with specific requests of the Client (additional vacuum pump, additional heater, trailer for road transportation etc.).
Our Units with higher oil treatment capacity are standardly equipped with frequency converter for adjustment of transformer oil flow during the treatment process.
Some of the components (such as fine and coarse filters, temperature control, construction of the heaters, gear pump) had to be modified to improve the operation of the Unit and to eliminate shortcomings noticed in the operation of some other machines of this kind.
In addition of production of Insulating oil filtration Plants, for over 30 Years, we are providing services for on-site oil filtration with our own Units.
Here is a short overview of some of our transformer oil filtration plants:

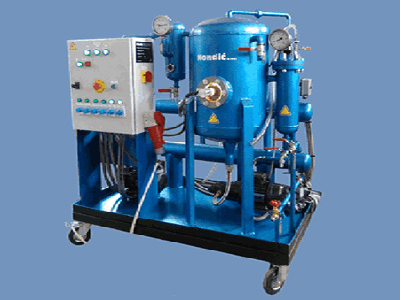

Transformer Oil Filtration Unit Type S-250
Capacity: 250 I/h
Heating capacity: 4kW
Filtration: 1-3 microns
Dimensions: 1200 x 700 x 1200 mm (H)
Weight: approx. 150kg
Transformer oil filtering unit S-250.pdf

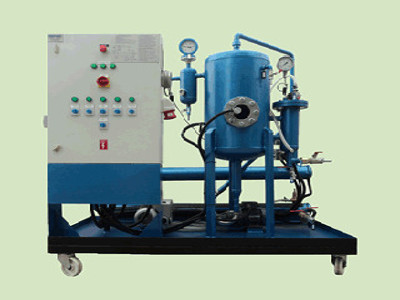

Transformer Oil Filtration Unit Type S-500
Capacity: 500 I/h
Heating capacity: 7,5kW
Filtration: 1-3 microns
Dimensions: 1650 x 900 x 1700 mm (H)
Weight: approx. 350kg
Transformer oil filtering unit S-500.pdf

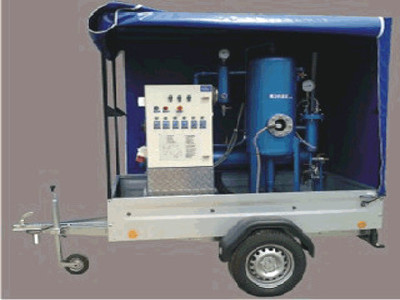

Transformer Oil Filtration Unit Type S-1000 Vario
Capacity: 300 - 1000I/h
Heating capacity: 15kW
Filtration: 1-3 microns
Dimensions: 1700 x 900 x 1750 mm (H)
Weight: approx. 450kg
Transformer oil filtering unit S-1000.pdf

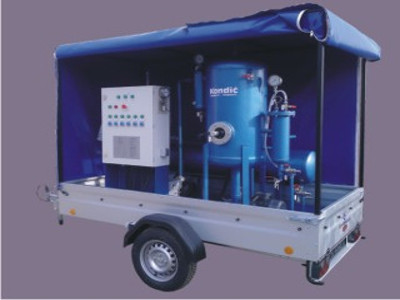

Transformer Oil Filtration Unit Type S-2000 Vario
Capacity: adjustable from 600 - 2000I/h
Heating capacity: 30kW
Filtration: 1-3 microns
Dimensions: 1900 x 1100 x 1700 mm (H)
Weight: approx. 600kg
Transformer oil filtering unit S-2000.pdf

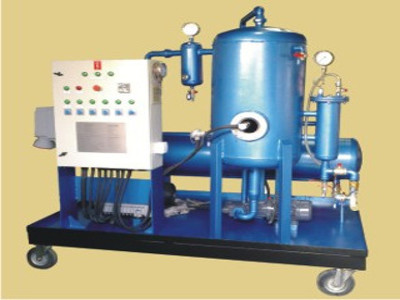

Transformer Oil Filtration Unit Type S-3000 Vario
Capacity: adjustable from 900 - 3000I/h
Heating capacity: 45kW
Filtration: 1-3 microns
Dimensions: 2000 x 1200 x 2100 mm (H)
Weight: approx. 700kg
Transformer oil filtering unit S-3000.pdf

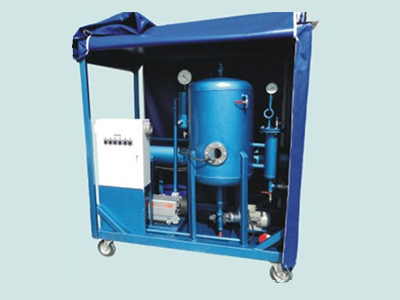

Transformer Oil Filtration Unit Type S-4000 Vario
Capacity: adjustable from 1200 - 4000I/h
Heating capacity: 60kW
Filtration: 1-3 microns
Dimensions: 2000 x 1200 x 2000 mm (H)
Weight: approx. 800kg
Transformer oil filtering unit S-4000.pdf
